Hello and welcome to another SQL Server Video. My name is Michael Campbell, and in this video we’ll look at ways to troubleshoot maintenance plans created with SQL Server Management Studio – specifically in terms of maintenance plans designed for backups.

In a previous video, Creating Maintenance Plans with SQL Server Management Studio, we looked at how to use maintenance plans to create reliable backup routines that serve as a core component of disaster recovery plans.

And during that video, we saw how the plan substeps and details that we outlined were turned into individual schedulable tasks, or jobs, that SQL Server could hand off to the SQL Server Agent for regular execution.

Therefore, in this video, we’ll take a look at things that you can do to troubleshoot cases where something goes wrong with these regularly scheduled jobs.

And, in this video we’ll debug and troubleshoot using SQL Server Management Studio 2008, though everything we’ll look at in this video can just as easily be done in SQL Server Management Studio 2005.

To get started, we’ll go ahead and open up the SQL Server Agent node – and look at the jobs that we created in our previous screencast on authoring maintenance plans.

Sadly, however, this listing of jobs in the treeview doesn’t tell us if these jobs are running into any problems or not – and to see that kind of information, we need to open up the Job Activity Monitor – which instantly shows us that one of our maintenance plan jobs recently ran into a problem, because the icon is a red x.

Of course, the red-x only indicates a failure the last time this job was run – so don’t assume that just because you don’t see any red-xes that everything is fine – as you may have a job that’s occasionally running into problems.

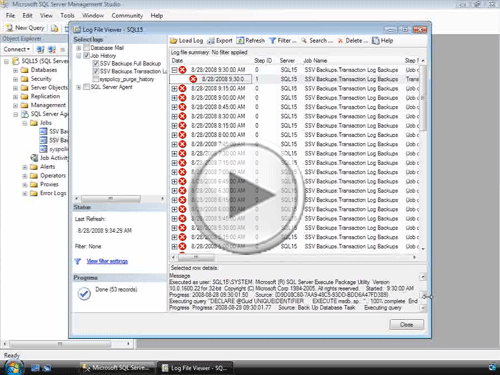

Therefore, to get more complete, and chronological, information about execution outcomes, we can right click on an individual job and select the View History option. And what’s great about this option, is that it’s available from the main tree-view – meaning that we don’t have to launch the Job Activity Monitor just to assess how our jobs are executing.

And from the left-pane of the logging viewer we can also include any other jobs we want to look at – making this tool a great for quickly sizing up how your backups and other maintenance tasks (as well as other SQL Agent Jobs) are behaving over time.

Then, if we expand one of the instances of this job that encountered a failure, we see that there’s a sub-entry for the actual execution of the SQL Server Integration Services package that was created when we defined our maintenance plan-sub step that corresponds to this job.

And we’ll want to pay attention to that sub-entry, because if we look at the details of the parent node, we’ll just get lame information from the SQL Server Agent telling us that ‘the job failed’ – which obviously isn’t too helpful.

On the other hand, if we look at the details for the child node, we see that there’s a lot more information. Sometimes, this information will actually make sense. Sadly, many other times it’s just a collection of what appears to be incomplete or abridged logging information. In cases like this, I typically TRY to read through most of these incomplete details – and see if I can get a feeling for anything that might make sense. Sometimes that pays off. Sometimes that also leads me on a wild goose-chase – as I think I might be on to something, when the problem is actually something else altogether.

As such, a great way to try and troubleshoot problems that you encounter here, or in any logs for that matter, is to look for something that looks like it would be specific to this individual failure or issue. Error codes or numbers are always the best thing to look for, but if you can’t find one of those, look for something else that doesn’t look like it’s just part of the ‘normal reporting’ process.

So, in this case, something like the ‘DTSER_FAILURE’ text might be the best thing to look for.

And once you find something that seems to be fairly specific, copy and paste that exact information into Google.

Taking this approach won’t always lead you to a solution, but as you start tracking down different options, you’ll frequently start to get a feel for what some of the probably culprits could be.

Of course, the big problem here is that these details just don’t seem to be complete – and if we could just get a feel for the order of operations – in order to see what completes and what doesn’t, we might be able to get a much better feeling for what’s going wrong.

Happily, in cases where we want to troubleshoot problems like this, we can enable additional logging options that can help give us greater insight into what’s going on.

To do this, we just need to play around with some of the options for our maintenance plan – where we can turn on some logging and reporting capabilities.

And from this dialog, we can give ourselves better insight into what’s going on by enabling text file reports – which I’ll just tell the server to drop into my backups directory in order to keep things a bit more tidy.

Likewise, the option to turn on extended logging information can be helpful in some scenarios – but in others, it won’t add more logging information than what already exists. That said, it’s still an option you’ll want to check when troubleshooting.

Note too that these settings apply to all of the subplans within your maintenance plan. And it’s also worth calling out that these additional logging options are all turned off by default.

Therefore, if you’re going to turn them on, I’d recommend adding a new sub-plan to your maintenance plan – just to make sure that you’re deleting any of these reports that are older than say… 3 or 4 weeks old – as they’ll just start to clutter up you logging directories without this cleanup.

With these changes in place, we can wait for our jobs to re-run, and when they do, we’ll have increased instrumentation and reporting options available to help troubleshoot what’s going on.

Likewise, if running your job won’t introduce any negative side-effects, you can also re-run it – which I’ll do now to simulate a scheduled run.

And once it fails, if we return to the history for this job, it would be nice to see some extended logging information – but in this specific case we’re not given any additional information – given the nature of this error.

But, we can still take advantage of those newly added text file reports generated during job execution by navigating out to the directory where they were written, and opening them up for additional information.

When looking at this report, it would be great if something in big, bold, text leapt out from this report and explained where the error or problem was.

Happily, sometimes when you look through these reports, that’s pretty much what will happen. In fact, in my own experience, when it comes to troubleshooting backups that are executed as part of a maintenance plan, I’ve found SQL Server to do an insanely good job overall.

Meaning that I’ve rarely run into problems or errors – and when I have, it’s USUALLY been because I’m running short on disk, or because transaction log backups and full backups are trying to execute at the same time, or because a database that is executing transaction log backups has accidentally been set to simple recovery.

And in cases like those, looking at this report makes troubleshooting very easy.
In our case though, something else is up. So, in cases like this – where it looks like everything should be working, you can use the details from this report to help give you a better insight into what’s up as well. And to do that, you can actually copy and paste the commands being executed into a new query window and execute them – as long as doing so won’t introduce any instability or side-effects into your system.

And I’ve found, in many cases, that this is a great way to see what the job-scheduler ‘sees’ when it runs commands – and, as such, this represents a great way to troubleshoot.

Of course, before you can run this code, you’ll need to account for some funky escaping going on when this information is logged – by replacing double-ticks with single ticks, but once you do so, you’re then free to run the code and see if that sheds any additional light on the problem.

In this case, executing the SQL won’t shed any additional light on the problem – because the SQL works perfectly. Which means that the problem has something to do with the way the package is handling clean up or finalization tasks.

And, interestingly enough, by Googling on the DTSER_FAILURE text that we looked at earlier, and evaluating some of the responses I found with the fact that this SQL statement is working perfectly, I was able to solve this problem after finding a report where someone else had a similar problem and solved it by merely recreating the subplan giving them grief. Which is exactly what I did.
But, hopefully now that you’ve watched this video you’ll have a better handle on how to troubleshoot your own jobs and tasks. And, as you can see, here’s a recap of the things you’ll want to do when trying to troubleshoot your own maintenance plans.

Otherwise, we’re done with this video – thanks for joining, and we hope to see you in subsequent videos.
